NIKA-DoubleBraided 100% Polyester Rope

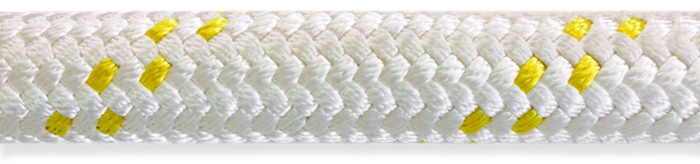

Double Braided 100% Polyester Mooring Rope

NIKA-DoubleBraided Polyester Ropes are 100% Polyester ropes constructed by braiding a 32/64 strand sheath (or jacket) over a braided core.

Their construction is fit for applications requiring high breaking load and low stretch properties.

They have excellent resistance to abrasion wet/dry, cyclic loading, sunlight, chemicals and same performance wet/dry.

APPLICATIONS: MOORING - ANCHORING - TOWING - TAILS

They are produced according to international standards such as EN ISO 10547, MIL-R-24677, CI 1311, BS 7648.

They are user friendly, rotation resistant and easy to splice. Their larger contact area reduces the fatigue on the rope when it spools and when passing through fairleads.

Polyester fibers possess the best endurance among all the high tenacity fibers. These ropes comply to the latest regulations and recommendations of OCIMF for the safe mooring of tankers.
Double Braided 100% Polyester Mooring Rope by Katradis Marine Ropes
Specific gravity: 1.38
Melting point: 265oC
Zero Strength Temperature: 245oC
Elongation at breaking: 15-20%
Fiber Water Absorpsion: 0-1%
50% Strength Loss Temperature: 177oC
Chemical resistance to ALKALI:  VERY GOOD
Chemical resistance to ORGANIC SOLVENT:  EXCELLENT
Chemical resistance to ACID:  EXCELLENT. Strength loss in NaOH and H2SO4 in high concentration and temperature
Technical Data
Size circ

Size Diam

Weight
+/-5%
Minimum Breaking Load
Inch mm Kilos / 100m Kilos / 220m Tons
41/2 36 103 227 30.5
5 40 122 268 38
51/2 44 147 323 46
6 48 176 387 55
61/2 52 205 451 66
7 56 238 524 76
71/2 60 274 603 87
8 64 312 686 100
81/2 68 355 781 114
9 72 395 869 126
91/2 76 439 966 141
10 80 487 1071 158
101/2 84 538 1184 174
11 88 591 1300 189
12 96 702 1544 226
