Arch fenders

Arch fenders

Arch fenders are very popular and have an improved energy / reaction force. A very practical solution where mounting space is limited.

Each fender may be equipped with an embedded steel plate, which allows a low friction PE rubbing plate to be fitted.

  • Application to Ro-Ro / general cargo / work boats, tugs and barges berths

  • Long service time

  • Low reaction force and high energy absortpion

  • Can be supplied with frontal panel, protecting the fender and lower down the hull pressure

  • Large range and variety of installation ways

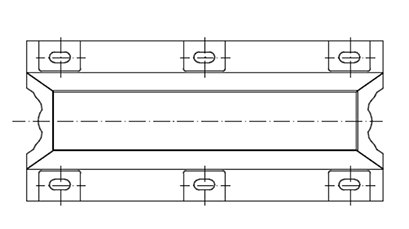

Dimensions

Arch fenders
Arch fenders

Rubber & UHMWPE Arch Fenders with Steel Panel

Arch fenders
Arch fenders
Arch fenders
Arch fenders
Arch fenders

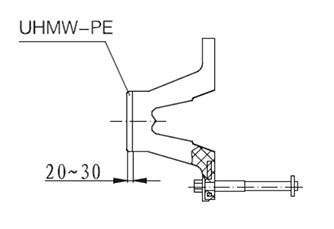

Rubber & UHMWPE Bonded Arch Fenders

Arch fenders - Rubber & UHMWPE Bonded Arch Fenders
Arch fenders - Rubber & UHMWPE Bonded Arch Fenders
Arch fenders - Rubber & UHMWPE Bonded Arch Fenders

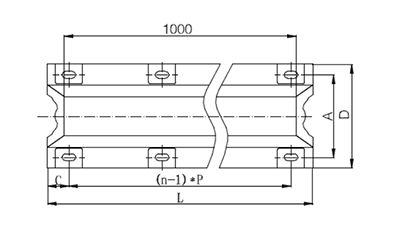

Dimensions(units: mm, kg)
  C P L1 L A D G H n WEIGHT
DGH-A150*1000 110 855 150 1075 240 300 98 96 2 37
DGH-A200*1000 120 860 200 1100 320 400 130 128 2 62
DGH-A250*1000 130 865 250 1125 410 500 164 128 2 85
DGH-A300*1000 140 870 300 1150 490 600 225 195 2 125
DGH-A400*1000 150 900 400 1200 670 800 300 260 2 205
DGH-A500*1000 160 930 500 1250 840 1000 375 325 2 325
DGH-A600*1000 170 960 600 1300 1010 1200 450 390 2 480
DGH-A800*1000 180 1040 800 1400 1340 1600 600 520 2 875
DGH-A1000*1000 200 1100 1000 1500 1680 2000 750 650 2 1400





Dimensions(units: mm)
  N Md STEEL FRAME UHMW-PE PAD LENGTH
T1 S1 MD T2 S2
DGH-B150 0 M16 250-300 125 M16 300-400 60 .=<3500
DGH-B200 0 M16 250-300 125 M16 300-400 60 .=<3500
DGH-B250 64 M16 250-300 125 M20 300-400 60-85 .=<3500
DGH-B300 105 M16 250-300 125 M24 300-400 60-85 .=<3500
DGH-B400 180 M16 250-300 125 M27 300-400 60-85 .=<3500
DGH-B500 245 M16 250-300 125 M30 300-400 60-85 .=<3500
DGH-B600 310 M16 250-300 125 M30 300-400 60-85 .=<3500
DGH-B800 440 M16 250-300 125 M36 300-400 60-85 .=<3500
DGH-B1000 570 M16 250-300 125 M36 300-400 60-85 .=<3500





Technical Data
R:KN RL RO RH RS
E: KNm rated defle-
ction
45%
max. defle-
ction
50%
rated defle-
ction
45%
max. defle-
ction
50%
rated defle-
ction
45%
max. defle-
ction
50%
rated defle-
ction
45%
max. defle-
ction
50%
DGH-A150*1000 R 56 76 84 113 112 151 129 174
E 3 4 4 5 6 7 7 8
DGH-A200*1000 R 76 104 113 153 151 204 174 234
E 6 7 10 11 12 13 14 15
DGH-A250*1000 R 148 205 172 239 208 288 270 375
E 16 17 18 19 22 23 28 30
DGH-A300*1000 R 177 246 206 286 249 346 324 450
E 22 24 26 28 31 33 41 44
DGH-A400*1000 R 236 328 275 382 332 461 432 600
E 40 43 46 49 56 60 73 78
DGH-A500*1000 R 295 410 344 478 415 576 540 750
E 62 66 72 77 87 93 113 121
DGH-A600*1000 R 354 492 412 572 498 692 647 899
E 89 95 104 111 126 135 163 175
DGH-A800*1000 R 472 656 550 764 664 922 864 1200
E 159 170 185 198 223 239 290 311
DGH-A1000*1000 R 590 820 688 956 830 1153 1080 1500
E 248 266 289 310 349 374 454 486





Technical Data
R:KN RL RO RH RS
E: KNm
DGH-B150 R 78 116 155 181
E 3 5 7 7
DGH-B200 R 103 157 208 241
E 6 8 11 13
DGH-B250 R 144 165 196 257
E 12 15 19 24
DGH-B300 R 158 200 242 326
E 16 21 27 35
DGH-B400 R 229 261 316 413
E 31 41 49 64
DGH-B500 R 269 354 401 511
E 54 64 78 102
DGH-B600 R 299 386 462 613
E 71 83 108 133
DGH-B800 R 456 510 621 831
E 126 150 200 265
DGH-B1000 R 539 659 788 1015
E 221 262 312 417
