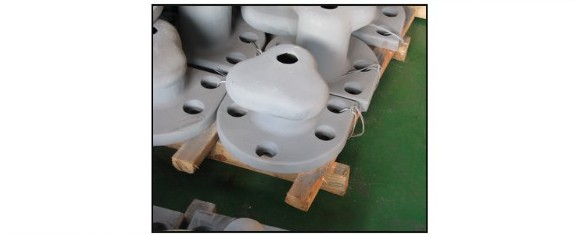

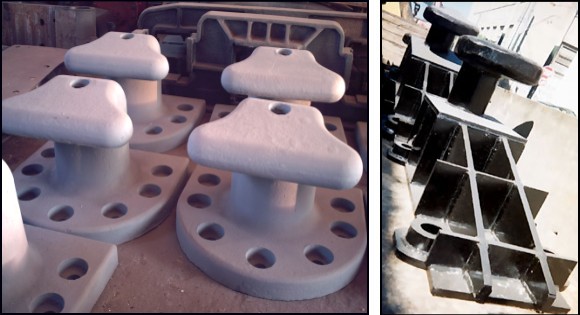

T-Head Bollards

  • We offer a wide range of bollard models, sizes, materials and anchor patterns.
  • Our bollards can be used in various shipyards, docks and marine applications.
  • Bollard Materials: Cast iron, ductile iron, cast steel.
Bollards
Bollards
Bollards
Bollards



Technical Data
METRIC DIMENSIONS (mm) MT10 MT15 MT20 MT30 MT50 MT75 MT100 MT125 MT150 MT200
A 47 52 54 57 70 80 80 87 93 97
B 199 219 240 250 308 354 413 458 492 521
C 305 335 351 366 451 518 610 671 719 762
D 381 419 438 457 564 648 762 838 899 952
E 330 363 380 396 489 561 660 726 779 826
F 44 49 51 53 66 76 89 98 105 111
G - - - - - - 305 335 360 349
H - - 232 242 298 298 496 546 586 559
I 243 267 329 343 423 463 572 629 674 694
J 103 114 0 0 0 105 0 0 0 119
K - - 152 159 196 241 195 215 231 299
L - - - - - - 291 320 343 365
M 292 321 336 351 432 497 584 643 689 730
N 189 208 217 226 279 321 377 415 445 472
BOLT SIZE M24 M24 M24 M30 M36 M42 M42 M48 M48 M56
BOLT LENGTH 450 450 450 450 600 600 600 750 750 915
BOLT QTY 4 4 4 5 5 6 7 7 7 8
