Cylindrical fenders

Cylindrical fenders are useful for various applications providing an economical solution for berths serving large and small vessels

  • Easy to install

  • Suitable for multi user berths

  • Low reaction and hull pressure

  • Reasonable energy absorption

  • Various installations ways (Horizontal / vertical, diagonal)

Cylindrical Fenders
Cylindrical Fenders

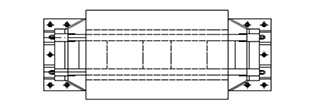

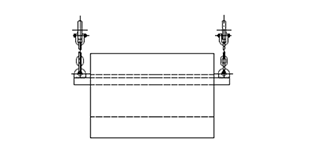

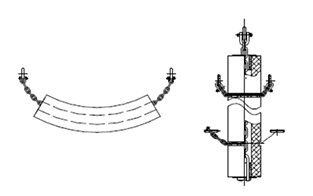

Typical Fixing Arrangements

Cylindrical Fenders Typical Fixing Arrangements Cylindrical Fenders Typical Fixing Arrangements Cylindrical Fenders Typical Fixing Arrangements

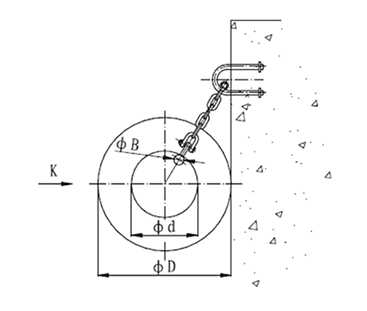

TYPE 1 (unit: mm)
  D d CHAIN
*Y120 120 60 Φ14
Y150 150 75 Φ16
*Y180 180 90 Φ16
Y200 200 100 Φ18
*Y220 220 110 Φ18
*Y240 240 120 Φ20
Y250 250 125 Φ20
*Y260 260 130 Φ20
Y300 300 150 Φ24
Y350 350 175 Φ25
*Y390 390 195 Φ28
Y400 400 200 Φ28
*Y440 440 220 Φ28
*Y460 460 230 Φ30
*Y480 480 240 Φ30
Y500 500 250 Φ32
*Y530 530 265 Φ32
*Y540 540 270 Φ32
Y600 600 300 Φ36
Y700 700 350 Φ36

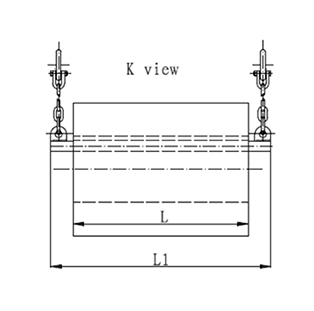

TYPE 2 (unit: mm)
YD*d L B L1 chain
Y800*400 1000 60 1350 φ25
1500 75 1850 φ28
2000 90 2370 φ32
2500 100 2870 φ34
3000 120 3430 φ40
Y900*450 1000 60 1370 φ28
1500 80 1870 φ30
2000 95 2430 φ34
2500 110 2930 φ38
3000 125 3430 φ42
Y1000*500 1000 65 1370 φ28
1500 85 1870 φ30
2000 100 2430 φ38
2500 120 2930 φ40
3000 130 3430 φ44
Y1100*550 1000 70 1370 φ30
1500 90 1870 φ32
2000 110 2430 φ38
2500 125 2930 φ42
3000 140 3510 φ46
Y1200*600 1000 75 1370 φ30
1500 95 1930 φ36
2000 115 2430 φ40
2500 130 2930 φ44
3000 150 3510 φ50
Y1300*650 1000 80 1370 φ32
1500 100 1930 φ38
2000 120 2430 φ42
2500 140 3010 φ48
3000 160 3510 φ50
Y1400*700 1000 80 1430 φ34
1500 105 1930 φ38
2000 125 2470 φ44
2500 150 2970 φ48
3000 170 3510 φ52
Y1500*750 1000 85 1430 φ36
1500 110 1930 φ40
2000 130 2470 φ46
2500 150 2970 φ48
3000 170 3510 φ52
Y1600*800 1000 90 1430 φ38
1500 115 1970 φ40
2000 140 2470 φ46
2500 160 3010 φ50
3000 180 3510 φ54





Technical Data
YD*d rated deflection 50% WEIGHT kg/m
RO RH
R:KN E:kNm R:KN E:kNm
Y150*75 44 1.5 73 2.3 17.2
Y200*100 60 2.6 95 4.2 30.6
Y250*125 75 4 120 6.5 48
Y300*150 89 6 143 9 69
Y350*175 104 8 167 13 94
Y400*200 119 10 191 17 123
Y500*250 148 16 239 26 191
Y600*300 179 24 286 37 276
Y700*350 208 31 334 50 375
Y800*400 237 41 383 66 490
Y900*450 268 52 430 84 620
Y1000*500 297 64 479 103 766
Y1100*550 331 77 528 129 727
Y1200*600 363 95 574 152 1103
Y1300*650 392 108 623 179 1294
Y1400*700 422 128 670 208 1500
Y1500*750 451 147 718 238 1720
Y1600*800 481 176 776 282 1960
Y1700*850 511 206 824 338 2210
Y1800*900 541 247 872 406 2480
Y1900*950 570 288 920 487 2765
Y2000*1000 653 321 1054 584 3063
