D - fenders

Extruded Fenders - D-fenders

Extruded fenders are used for general purpose and light/medium duty applications such as harbors receiving smaller vessels, and fitting to tugs and workboats.

  • Application to wharves for small crafts / inland waterways / work boats, tugs berths

  • Available at any length

  • Black or grey color

  • Large range and variety of installation ways

D-fenders
D-fenders

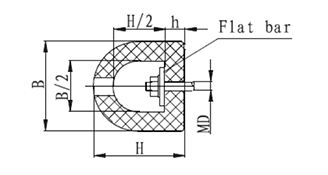

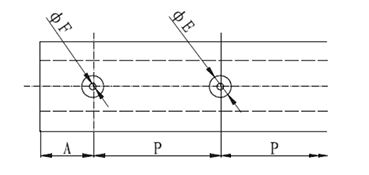

Dimensions (units: mm, kg/m)
SIZE B H h A P FLAT BAR W*T MD F E WEIGHT
DD100 100 100 30 100-150 400-500 40*5 M20 25 60 10
DD150 150 150 35 100-150 400-500 60*8 M22 27 60 18.5
DD200 200 200 50 100-200 400-500 80*10 M24 30 60 35
DD250 250 250 62.5 100-200 400-500 90*12 M27 33 65 55
DD300 300 300 75 100-200 400-600 110*14 M30 35 65 78
DD350 350 350 87.5 100-200 400-600 130*16 M33 38 80 107
DD400 400 400 100 100-200 400-600 150*16 M36 40 80 140
DD500 500 500 125 100-200 400-600 180*20 M42 45 95 218



Technical Data
SIZE RATED DEFLECTION 40%
R:KN E:kNm
DD100 42 0.8
DD150 75 2
DD200 101 3.6
DD250 126 5.7
DD300 151 8.2
DD350 176 10.8
DD400 202 14.5
DD500 252 22.7
