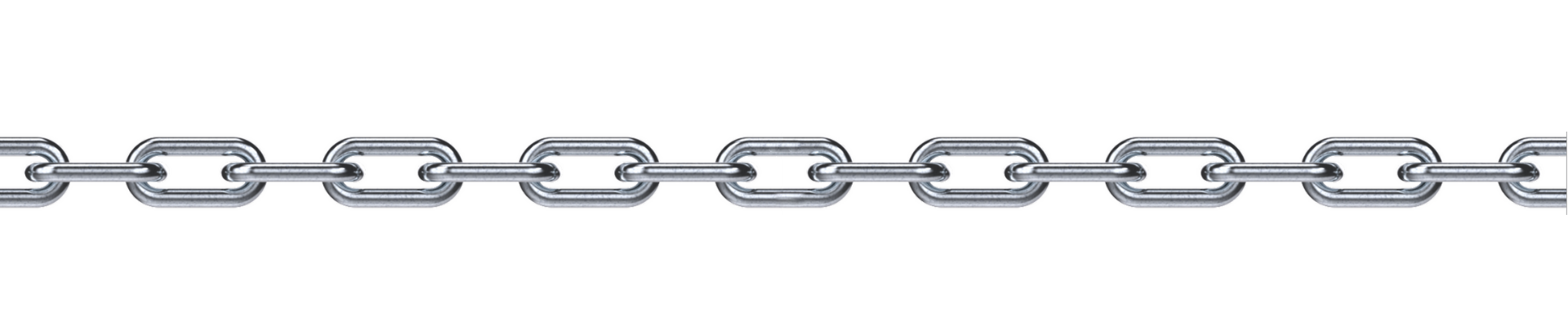

We keep a large stock of studlink chains and accessories in U2 and U3 grades, from the smallest to the largest sizes in Greece for prompt delivery when needed ( which are accompanied with IACS class test Certificates guaranteeing top quality materials) and studless long link chains of high tensile strength.
In our testing facilities of 250 tons capacity and 32m free test length, approved for accuracy by the classification Societies, we undertake on your account tests of specimens and materials.
Adequate attachments for tests of anchors up to 15 tons and anchor chains up to the max capacity of 2452 kN (breaking test of links or proof test of full length) are available for our clients.

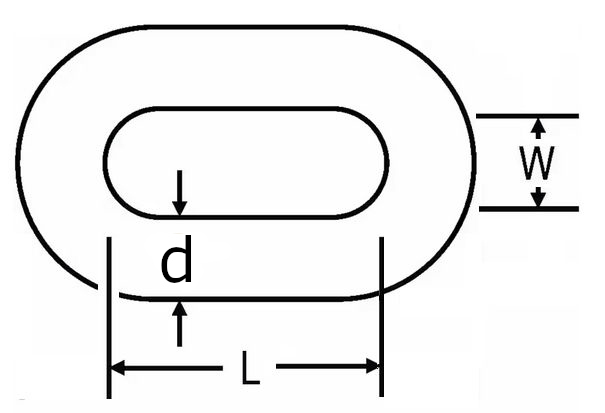

| Diameter (d) | Pitch (L) | Inner width (W) | MBL | Approx. Weight/m |
|---|---|---|---|---|
| mm | Tons | kilos | ||
| 10,00 | 65,00 | 18,00 | 6,00 | 1,75 |
| 13,00 | 82,00 | 23,40 | 10,10 | 2,95 |
| 16,00 | 100,00 | 28,80 | 15,30 | 4,45 |
| 18,00 | 108,00 | 27,00 | 19,30 | 5,70 |
| 20,00 | 120,00 | 30,00 | 23,80 | 7,00 |
| 22,00 | 132,00 | 33,00 | 28,60 | 8,50 |
| 25,00 | 150,00 | 37,50 | 36,80 | 10,90 |
| 28,00 | 168,00 | 42,00 | 45,80 | 13,60 |
| 30,00 | 180,00 | 45,00 | 52,40 | 15,70 |
| 32,00 | 192,00 | 48,00 | 59,40 | 17,80 |
| 34,00 | 204,00 | 51,00 | 66,80 | 20,10 |
| 36,00 | 216,00 | 54,00 | 74,60 | 22,60 |
| 38,00 | 228,00 | 57,00 | 82,80 | 25,10 |
| 40,00 | 240,00 | 60,00 | 91,40 | 27,80 |
| 42,00 | 252,00 | 63,00 | 100,00 | 30,70 |
