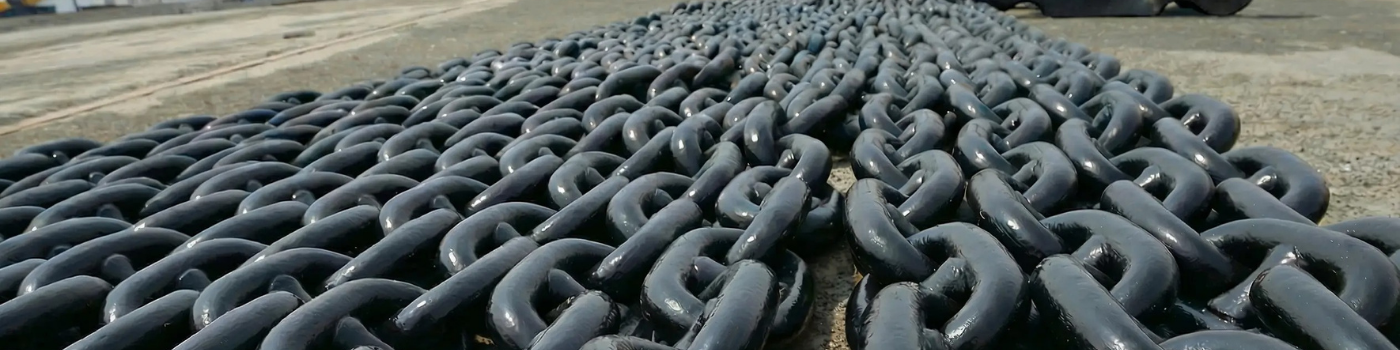

Stud link chain cables are one of the most important tools of the ship for its anchoring operations. Katradis stud link chain cables are produced using diligent production techniques, compliance to International standards & class societies’ rules and regulations, attention to every link, IACS class approved raw materials (steel bars), standardized tests, inspection in all stages of production, and heat treatment in big size ovens for total quality performance.
Our stud link chains are Grade U2 & U3 and are accompanied by IACS class test certificates. Our stud link chains are fit for any type of ship guaranteeing flawless quality, easy operation, and long service life. When selecting stud link chains, please remember that any chain is as strong as its weakest link.
Ship chain proof and breaking loads | |||||
---|---|---|---|---|---|
Chain Diameter | Grades | Min Weight (Kg per length of 27.5m) | |||
Proof Load, kN | Breaking Load, kN | ||||
0.00981d2 (44-0.08d) | 0.01373d2 (44-0.08d) | 0.01373d2 (44-0.08d) | 0.01961d2 (44-0.08d) | ||
mm | Grade 2 | Grade 3 | Grade 2 | Grade 3 | Kg |
14 | 82 | 116 | 116 | 165 | 130 |
16 | 107 | 150 | 150 | 216 | 160 |
17.5 | 128 | 179 | 179 | 256 | 190 |
19 | 150 | 211 | 211 | 301 | 225 |
20.5 | 175 | 244 | 244 | 349 | 265 |
22 | 201 | 281 | 281 | 401 | 300 |
24 | 238 | 333 | 333 | 475 | 360 |
26 | 278 | 389 | 389 | 556 | 420 |
28 | 321 | 450 | 450 | 642 | 490 |
30 | 367 | 514 | 514 | 734 | 565 |
32 | 416 | 583 | 583 | 832 | 635 |
34 | 468 | 655 | 655 | 936 | 720 |
36 | 523 | 732 | 732 | 1045 | 800 |
38 | 581 | 812 | 812 | 1160 | 895 |
40 | 640 | 896 | 896 | 1280 | 1000 |
42 | 703 | 984 | 984 | 1406 | 1100 |
44 | 769 | 1076 | 1076 | 1537 | 1200 |
46 | 837 | 1171 | 1171 | 1673 | 1300 |
48 | 908 | 1270 | 1270 | 1814 | 1440 |
50 | 981 | 1373 | 1373 | 1961 | 1560 |
52 | 1057 | 1479 | 1479 | 2113 | 1680 |
54 | 1135 | 1589 | 1589 | 2269 | 1795 |
56 | 1216 | 1702 | 1702 | 2430 | 1925 |
58 | 1299 | 1818 | 1818 | 2597 | 2060 |
60 | 1384 | 1938 | 1938 | 2767 | 2200 |
62 | 1472 | 2060 | 2060 | 2943 | 2350 |
64 | 1562 | 2187 | 2187 | 3123 | 2520 |
66 | 1655 | 2316 | 2316 | 3308 | 2680 |
68 | 1749 | 2448 | 2448 | 3496 | 2850 |
70 | 1846 | 2583 | 2583 | 3690 | 3030 |
73 | 1995 | 2792 | 2792 | 3988 | 3290 |
76 | 2149 | 3007 | 3007 | 4295 | 3550 |
78 | 2254 | 3154 | 3154 | 4505 | 3755 |
81 | 2415 | 3380 | 3380 | 4827 | 4035 |
84 | 2580 | 3612 | 3612 | 5158 | 4395 |
87 | 2750 | 3849 | 3849 | 5498 | 4710 |
90 | 2924 | 4093 | 4093 | 5845 | 5005 |
92 | 3042 | 4258 | 4258 | 6081 | 5200 |
95 | 3223 | 4510 | 4510 | 6442 | 5570 |
97 | 3345 | 4682 | 4682 | 6687 | 5760 |
100 | 3532 | 4943 | 4943 | 7060 | 6130 |
