LCP-Siri S12® (with Vectran™) COVERED are high-performance LCP ropes that have been developed for demanding applications and offer the unique characteristics of Vectran® fibers: Minimum Creep, endurance to high temperatures and superb abrasion resistance

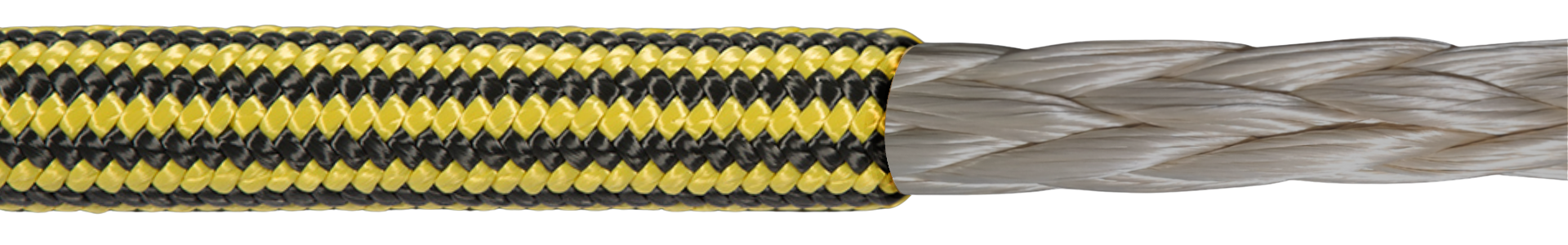

LCP-Siri S12® (with Vectran™) COVERED Ropes consist of a 12 strand High Modulus Vectran® core over-braided with a highly abrasion-resistant polyester jacket.
The use of the special NikaThane coating application on the Vectran® fibers and the superior in-house Linear Structural Preformation (LSP) process provides a high-quality robust rope construction with higher strength efficiency and excellent abrasion resistance. The jacket protects the High Modulus load-bearing core against abrasion and UV/environmental degradation and thus prolongs its service life.
Additionally, LCP-Siri S12® (with Vectran™) COVERED ropes are also available with the special application of Prisma® Shield Technology (under the brand of VectranPrisma-Siri S-12 DB®)
LCP-Siri S12® (with Vectran™) COVERED ropes are an excellent wire-rope and HMPE alternative and offer several benefits:
LCP-Siri S12® (with Vectran™) COVERED ropes are produced according to the latest international standards and they comply with OCIMF’s latest regulations & recommendations for the safe mooring of the tanker-LNG-LPG vessels.
| Nom. Size (Diam) | Weight (+/- 5%) | MBL (acc. ISO 2307) | LDBF (acc. MEG4) | |
|---|---|---|---|---|
| mm | kg / 100m mtr | kg / 220 mtr | tn | tn |
| 20 | 33,1 | 72,8 | 35,7 | 33,1 |
| 22 | 38,3 | 84,3 | 43,7 | 40,5 |
| 24 | 53,1 | 116,8 | 49,2 | 45,6 |
| 26 | 59,0 | 129,8 | 60,6 | 56,1 |
| 28 | 65,5 | 144,1 | 70,5 | 65,3 |
| 30 | 72,0 | 158,4 | 80,5 | 74,5 |
| 32 | 85,6 | 188,3 | 86,4 | 80,0 |
| 34 | 88,8 | 195,4 | 91,4 | 84,6 |
| 36 | 97,3 | 214,1 | 104,2 | 96,5 |
| 38 | 105,1 | 231,2 | 116,2 | 107,6 |
| 40 | 149,3 | 328,5 | 139,4 | 129,1 |
| 42 | 164,6 | 362,1 | 162,9 | 150,8 |
| 44 | 173,0 | 380,6 | 175,7 | 162,7 |
