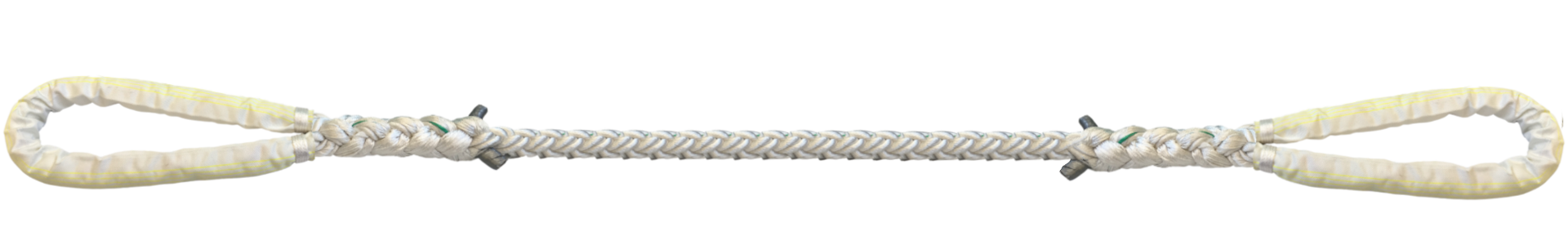

NIKA-NYLON Tails tails exhibit very high strengths & excellent dynamic load and shock absorption properties. 22m Nylon Mooring tails are ideal as mooring tails in exposed berths/terminals
| Nom. Size (Diam) | Nom. Size (Circ) | MBL (acc. ISO 2307) | ΤDBF (acc. MEG4) |
|---|---|---|---|
| mm | inches | tn | tn |
| 24 | 3” | 15.0 | 13.2 |
| 28 | 3 1/2” | 20.0 | 19.0 |
| 32 | 4” | 25.5 | 22.4 |
| 36 | 4 1/2” | 33.0 | 29.0 |
| 40 | 5” | 40.0 | 35.2 |
| 44 | 5 1/2” | 48.0 | 42.2 |
| 48 | 6” | 58.0 | 51.0 |
| 52 | 6 1/2” | 67.5 | 59.4 |
| 56 | 7” | 77.0 | 67.8 |
| 60 | 7 1/2” | 88.5 | 77.9 |
| 64 | 8” | 101.0 | 88.9 |
| 68 | 8 1/2” | 115.0 | 101.2 |
| 72 | 9” | 130.0 | 114.4 |
| 76 | 9 1/2” | 143.5 | 126.3 |
| 80 | 10” | 158.5 | 139.5 |
| 84 | 10 1/2” | 175.0 | 154.0 |
| 88 | 11” | 192.0 | 169.0 |
| 92 | 11 1/2” | 202.5 | 178.2 |
| 96 | 12” | 213.0 | 187.4 |
| 100 | 12 1/2” | 228.0 | 200.0 |
| 104 | 13” | 240.0 | 211.2 |
ΤDBF: Tail Design Break Force
MBL: Minimum Breaking Load
more sizes available upon request
