Arch fenders are very popular and have an improved energy/reaction force. A very practical solution where mounting space is limited.

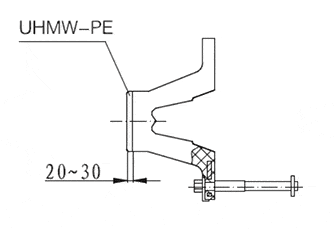

Each fender may be equipped with an embedded steel plate, which allows a low friction PE rubbing plate to be fitted.
| C | P | L1 | L | A | D | G | H | n | WEIGHT | |
|---|---|---|---|---|---|---|---|---|---|---|
| DGH-A150*1000 | 110 | 855 | 150 | 1075 | 240 | 300 | 98 | 96 | 2 | 37 |
| DGH-A200*1000 | 120 | 860 | 200 | 1100 | 320 | 400 | 130 | 128 | 2 | 62 |
| DGH-A250*1000 | 130 | 865 | 250 | 1125 | 410 | 500 | 164 | 128 | 2 | 85 |
| DGH-A300*1000 | 140 | 870 | 300 | 1150 | 490 | 600 | 225 | 195 | 2 | 125 |
| DGH-A400*1000 | 150 | 900 | 400 | 1200 | 670 | 800 | 300 | 260 | 2 | 205 |
| DGH-A500*1000 | 160 | 930 | 500 | 1250 | 840 | 1000 | 375 | 325 | 2 | 325 |
| DGH-A600*1000 | 170 | 960 | 600 | 1300 | 1010 | 1200 | 450 | 390 | 2 | 480 |
| DGH-A800*1000 | 180 | 1040 | 800 | 1400 | 1340 | 1600 | 600 | 520 | 2 | 875 |
| DGH-A1000*1000 | 200 | 1100 | 1000 | 1500 | 1680 | 2000 | 750 | 650 | 2 | 1400 |
| N | Md | STEEL FRAME | UHMW-PE PAD | LENGTH | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | S1 | MD | T2 | S2 | ||||
| DGH-B150 | 0 | M16 | 250-300 | 125 | M16 | 300-400 | 60 | .=<3500 |
| DGH-B200 | 0 | M16 | 250-300 | 125 | M16 | 300-400 | 60 | .=<3500 |
| DGH-B250 | 64 | M16 | 250-300 | 125 | M20 | 300-400 | 60-85 | .=<3500 |
| DGH-B300 | 105 | M16 | 250-300 | 125 | M24 | 300-400 | 60-85 | .=<3500 |
| DGH-B400 | 180 | M16 | 250-300 | 125 | M27 | 300-400 | 60-85 | .=<3500 |
| DGH-B500 | 245 | M16 | 250-300 | 125 | M30 | 300-400 | 60-85 | .=<3500 |
| DGH-B600 | 310 | M16 | 250-300 | 125 | M30 | 300-400 | 60-85 | .=<3500 |
| DGH-B800 | 440 | M16 | 250-300 | 125 | M36 | 300-400 | 60-85 | .=<3500 |
| DGH-B1000 | 570 | M16 | 250-300 | 125 | M36 | 300-400 | 60-85 | .=<3500 |
DGH-B bolting patterns are the same with DGH-A type
| R:KN | RL | RO | RH | RS | |||||
|---|---|---|---|---|---|---|---|---|---|
| E: KNm | rated defle- ction 45% | max. defle- ction 50% | rated defle- ction 45% | max. defle- ction 50% | rated defle- ction 45% | max. defle- ction 50% | rated defle- ction 45% | max. defle- ction 50% | |
| DGH-A150*1000 | R | 56 | 76 | 84 | 113 | 112 | 151 | 129 | 174 |
| E | 3 | 4 | 4 | 5 | 6 | 7 | 7 | 8 | |
| DGH-A200*1000 | R | 76 | 104 | 113 | 153 | 151 | 204 | 174 | 234 |
| E | 6 | 7 | 10 | 11 | 12 | 13 | 14 | 15 | |
| DGH-A250*1000 | R | 148 | 205 | 172 | 239 | 208 | 288 | 270 | 375 |
| E | 16 | 17 | 18 | 19 | 22 | 23 | 28 | 30 | |
| DGH-A300*1000 | R | 177 | 246 | 206 | 286 | 249 | 346 | 324 | 450 |
| E | 22 | 24 | 26 | 28 | 31 | 33 | 41 | 44 | |
| DGH-A400*1000 | R | 236 | 328 | 275 | 382 | 332 | 461 | 432 | 600 |
| E | 40 | 43 | 46 | 49 | 56 | 60 | 73 | 78 | |
| DGH-A500*1000 | R | 295 | 410 | 344 | 478 | 415 | 576 | 540 | 750 |
| E | 62 | 66 | 72 | 77 | 87 | 93 | 113 | 121 | |
| DGH-A600*1000 | R | 354 | 492 | 412 | 572 | 498 | 692 | 647 | 899 |
| E | 89 | 95 | 104 | 111 | 126 | 135 | 163 | 175 | |
| DGH-A800*1000 | R | 472 | 656 | 550 | 764 | 664 | 922 | 864 | 1200 |
| E | 159 | 170 | 185 | 198 | 223 | 239 | 290 | 311 | |
| DGH-A1000*1000 | R | 590 | 820 | 688 | 956 | 830 | 1153 | 1080 | 1500 |
| E | 248 | 266 | 289 | 310 | 349 | 374 | 454 | 486 | |
| R:KN | RL | RO | RH | RS | |
|---|---|---|---|---|---|
| E: KNm | |||||
| DGH-B150 | R | 78 | 116 | 155 | 181 |
| E | 3 | 5 | 7 | 7 | |
| DGH-B200 | R | 103 | 157 | 208 | 241 |
| E | 6 | 8 | 11 | 13 | |
| DGH-B250 | R | 144 | 165 | 196 | 257 |
| E | 12 | 15 | 19 | 24 | |
| DGH-B300 | R | 158 | 200 | 242 | 326 |
| E | 16 | 21 | 27 | 35 | |
| DGH-B400 | R | 229 | 261 | 316 | 413 |
| E | 31 | 41 | 49 | 64 | |
| DGH-B500 | R | 269 | 354 | 401 | 511 |
| E | 54 | 64 | 78 | 102 | |
| DGH-B600 | R | 299 | 386 | 462 | 613 |
| E | 71 | 83 | 108 | 133 | |
| DGH-B800 | R | 456 | 510 | 621 | 831 |
| E | 126 | 150 | 200 | 265 | |
| DGH-B1000 | R | 539 | 659 | 788 | 1015 |
| E | 221 | 262 | 312 | 417 | |
Values are for 1000mm long
