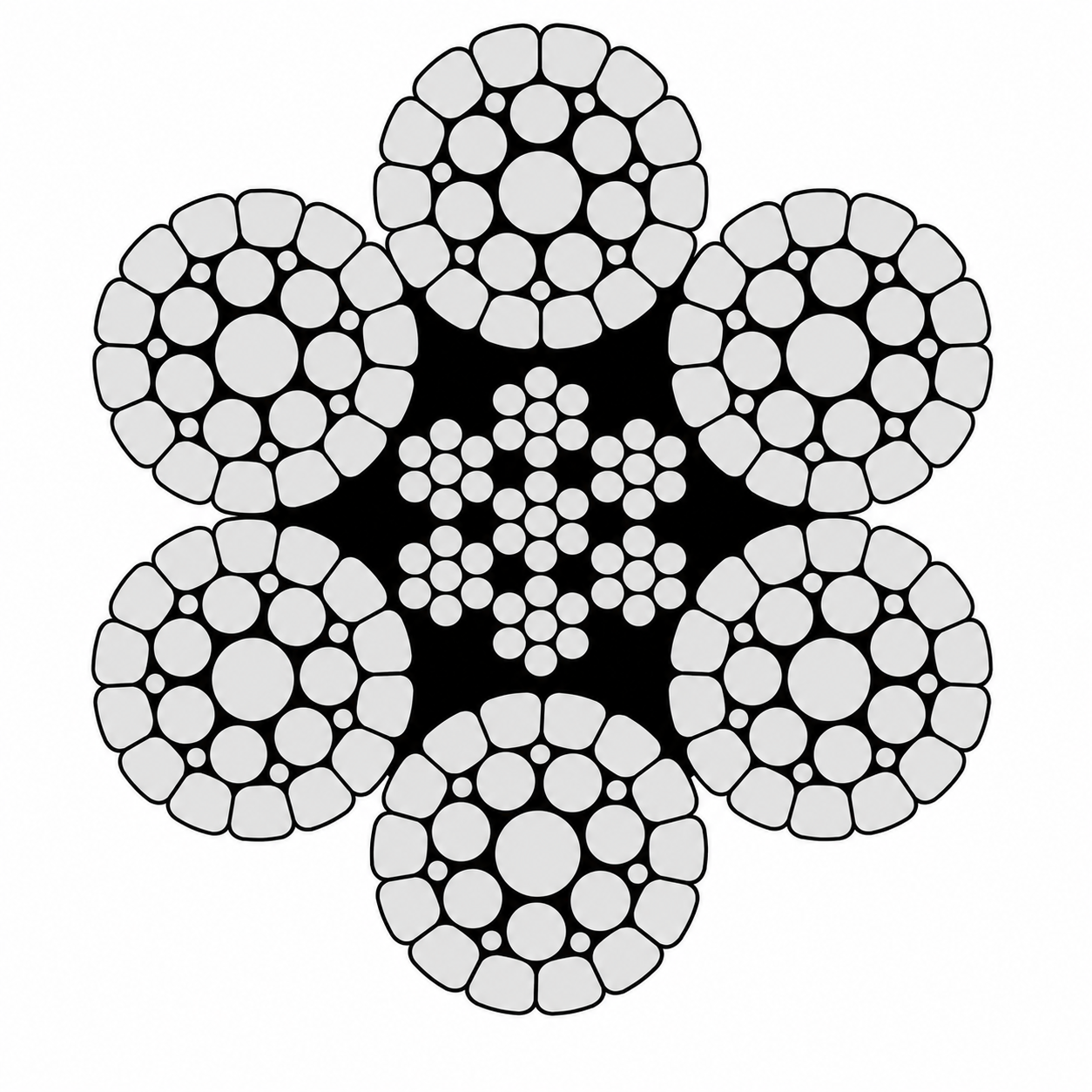

Drawn galvanized steel wire rope with compacted strands (non rotation resistant), used in many applications eg, as cargo runner, hoisting, luffing, mooring, towing, anchoring etc.
The independent wire rope core provides more strength and stability to the wire rope compared to fibre core. Parallel lay construction, long lifetime.
Construction in general according to EN 12385 standard but with compacted strands execution.
Compacting process has many advantages on rope’s & equipment’s performance & lifetime (increased resistance to drum crushing, corrosion, shock loading etc). Please read more on advantages of compacted wire ropes.
Additional cost savings occur due to longer lifetime, reduced abrasion and maintenance on rope and equipment.
| Nominal diameter | Approx. weight | Minimum breaking load 1960N/mm² |
|---|---|---|
| mm | Kg/m | KN |
| 6.0 | 0.17 | 30.9 |
| 6.4 | 0.19 | 34.7 |
| 7.9 | 0.28 | 53.3 |
| 8.0 | 0.29 | 53.8 |
| 9.0 | 0.37 | 65.5 |
| 9.5 | 0.41 | 78.3 |
| 10.0 | 0.45 | 84 |
| 11.0 | 0.55 | 102 |
| 11.1 | 0.56 | 106 |
| 12.0 | 0.65 | 122 |
| 12.7 | 0.73 | 136 |
| 14.0 | 0.89 | 167 |
| 14.3 | 0.93 | 172 |
| 16.0 | 1.16 | 210 |
| 18.0 | 1.47 | 267 |
| 19.0 | 1.64 | 301 |
| 20.0 | 1.82 | 335 |
| 22.0 | 2.20 | 402 |
| 22.2 | 2.24 | 411 |
| 24.0 | 2.62 | 485 |
| 25.4 | 2.93 | 540 |
| 26.0 | 3.07 | 560 |
| 28.0 | 3.56 | 650 |
| 28.6 | 3.72 | 670 |
| 30.0 | 4.09 | 750 |
| 31.8 | 4.59 | 830 |
| 32.0 | 4.65 | 850 |
| 34.0 | 5.25 | 980 |
| 35.0 | 5.57 | 1050 |
| 36.0 | 5.89 | 1120 |
