HYPERSTRONG 8C - 8strand Compacted

Compacted • 8-Strand • Inner Plastified Wire ropes (EPIWRC)

This wire rope belongs in the non rotation resistant classification but its strands are compacted and it is used mainly as luffing wire rope on high efficiency ship & harbour mobile cranes, container bridge cranes, overhead travelling hoists, mineral loading cranes.

It is an 8-strand construction, very flexible and suitable for use on many crane brands installed on board.

Main advantages

Extremely resistant & flexible 8-strand ordinary lay or Lang's lay rope with inner plastification, suited best as luffing rope.
Long service life due to inner plastification and reduced rope abrasion, resulting from the smooth rope surface, also exhibiting excellent flexural fatigue properties
Resistance against corrosion due to galvanized wires , the permanent lubrication and inner plastification
Reliability and safety in operation as a result of the highest breaking forces, especially provided by the compaction technology
Exceptional resistance against shock loads and vibrations due to the radial & elastic structured rope and inner plastification
Optimal spooling characteristics due to high resistance against radial deformations
Reduced maintenance effort due to intensive lubrication in each production step
Trouble-free operation

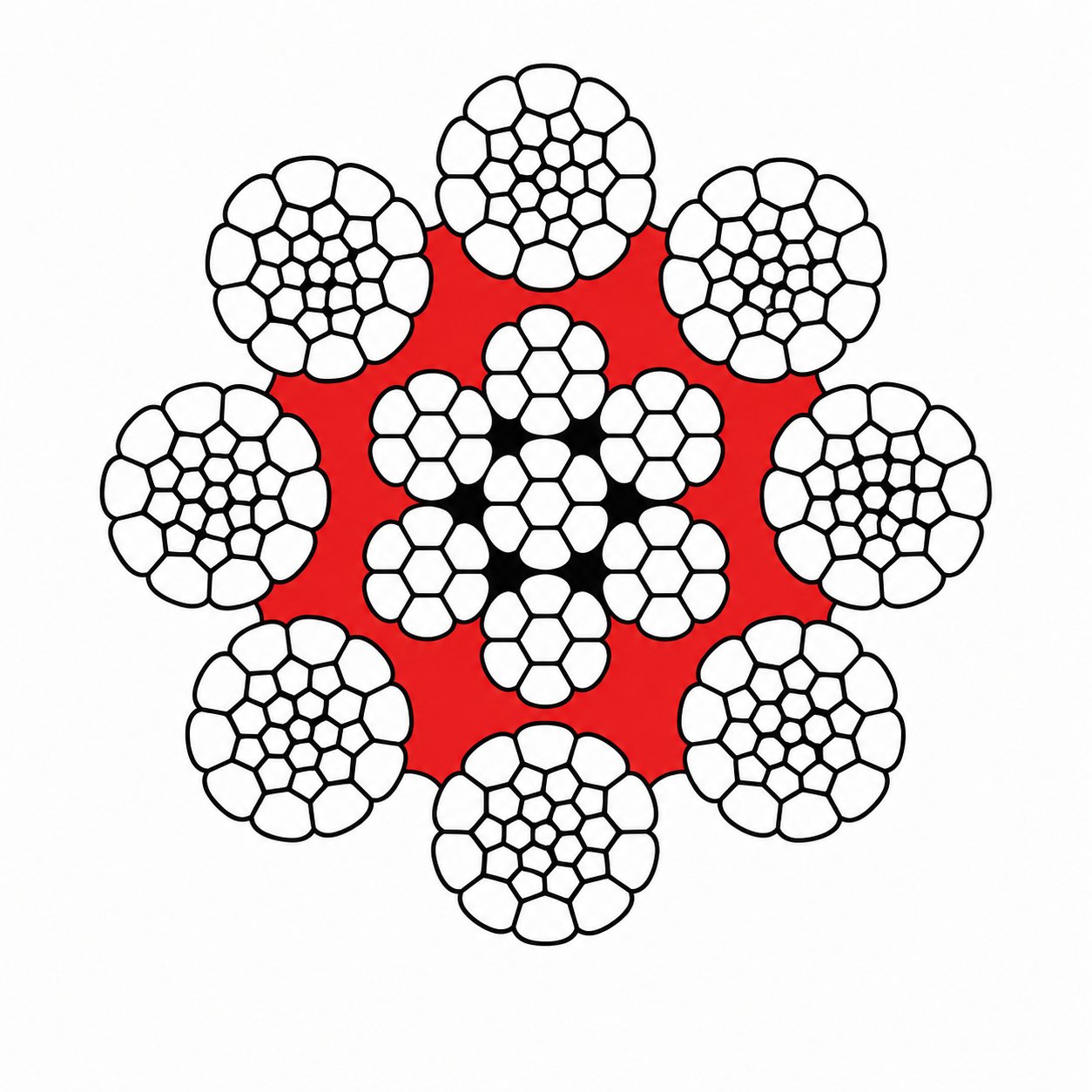

Compacted Strand & Inner Plastified

The 8C wire rope belongs in the non rotation resistant classification but its strands are compacted and is used mainly as luffing wire rope on the high efficiency ship & harbour mobile cranes.

It is an 8-strand construction, very flexible and is suitable for use on many crane brands installed on board.

The 8C wire ropes are usually produced as drawn galvanized and internally and externally lubricated, which makes them corrosion resistant and endurable against the various harsh marine environment factors.

Additionally, these ropes are produced with an extruded inner plastic layer, which ensures water impermeability and elimination of point contact between wires & strands of the inner and outer layers. This extra protection from corrosion and inner contact, prolongs the useful service life of the ropes.

Dilligent production processes, raw material selection and quality contol in all stages of production ensure a long and trouble free service life.

Compacting technology reduces the size and increases the breaking strength. Please read more on advantages of compacted wire ropes.

HYPERSTRONG 8C

Flexible 8-strand rope for long service life, suited as hoisting rope.
Longer service life for best profitability due to excellent flexural fatigue properties
Resistance against corrosion due to galvanized wires in combination with special plastic insert
High flexibility due to its innovative rope construction
Troublefree operation – due to outstanding absorption of dynamic forces such as shockloads and vibrations
OEM approved

Technical Data

Nominal diameter	Approx. weight	Minimum breaking load
Nominal diameter	Approx. weight	1770N/mm^²	1960N/mm^²	2160N/mm^²
mm	Kg/m	kN
10	0.46	79	87	96
11	0.55	95	105	115
12	0.69	114	126	139
13	0.81	137	152	168
14	0.93	159	176	194
15	1.06	182	201	222
16	1.20	206	229	252
17	1.35	233	258	284
18	1.55	260	288	318
19	1.71	294	326	359
20	1.89	324	359	395
21	2.15	363	401	442
22	2.34	396	439	484
23	2.54	433	480	529
24	2.75	462	512	564
25	2.97	508	562	620
26	3.19	546	605	667
27	3.51	588	651	717
28	3.76	640	708	781
28.6	3.90	659	730	804
29	4.03	682	755	832
30	4.30	740	819	903
32	4.90	842	932	1027
34	5.59	936	1036	1142
36	6.26	1055	1168	1287
38	6.96	1195	1323	1458
40	7.71	1312	1453	1601
42	8.45	1449	1604	1768
44	9.27	1573	1742	1920
