HYPERFLEX N - 19x7 - Katradis Marine Ropes Ind. S.A.

Nominal diameter	Approx. weight	Minimum breaking load
1770N/mm^²	1960N/mm^²
mm	Kg/m	kN
7	0.196	28.4	31.5
8	0.257	37.2	41.1
9	0.325	47.0	52.1
10	0.401	58.1	64.3
11	0.485	70.2	77.8
12	0.577	83.6	92.6
13	0.678	98.1	109
14	0.786	114	126
15	0.908	131	146
16	1.030	149	165
17	1.165	168	187
18	1.300	188	208
19	1.450	210	233
20	1.600	232	257
22	1.940	281	311
24	2.310	334	370
25	2.510	363	403
26	2.710	392	435
28	3.140	455	504
30	3.610	523	579
32	4.110	594	658
34	4.640	671	743
36	5.200	752	833

Nominal diameter

Approx. weight

Minimum breaking load

1770N/mm^²

1960N/mm^²

Kg/m

0.196

28.4

31.5

0.257

37.2

41.1

0.325

47.0

52.1

0.401

58.1

64.3

0.485

70.2

77.8

0.577

83.6

92.6

0.678

98.1

109

0.786

114

126

0.908

131

146

1.030

149

165

1.165

168

187

1.300

188

208

1.450

210

233

1.600

232

257

1.940

281

311

2.310

334

370

2.510

363

403

2.710

392

435

3.140

455

504

3.610

523

579

4.110

594

658

4.640

671

743

5.200

752

833

To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.

Functional Always active

The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.

Preferences

The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.

Statistics

The technical storage or access that is used exclusively for statistical purposes. The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.

Marketing

The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.

19×7

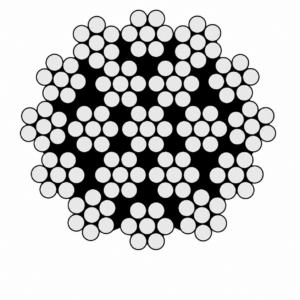

HYPERFLEX N - 19×7
