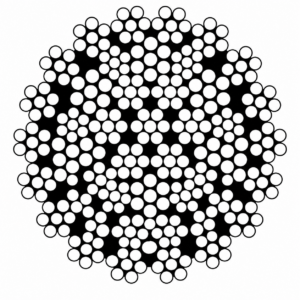

This wire rope belongs in the multi strand, rotation resistant classification and is used as hoisting wire rope. It is very flexible, 3-layer construction and is suitable for use on many crane brands installed on board.
35(W)X7 ropes are usually produced as drawn galvanized and internally & externally lubricated, which makes them corrosion resistant and endurable against the various harsh marine environment factors.
Construction according to the EN 12385 standard.
Dilligent production processes, raw material selection and quality contol in all stages of production ensure a long and trouble free service life.
Attention must be paid on the installation of the new rope on board, its running-in (bedding in) period and load and the inspection before and after every usage.
Nominal diameter | Approx. weight | Minimum breaking load | |
---|---|---|---|
1770N/mm² | 1960N/mm² | ||
mm | Kg/m | kN | |
10 | 0.454 | 63.8 | 70.6 |
11 | 0.549 | 77.1 | 85.4 |
12 | 0.654 | 92.1 | 102 |
13 | 0.767 | 108 | 119 |
14 | 0.890 | 125 | 138 |
15 | 1.025 | 145 | 160 |
16 | 1.160 | 164 | 181 |
18 | 1.470 | 207 | 229 |
19 | 1.645 | 231 | 256 |
20 | 1.820 | 255 | 282 |
21 | 2.010 | 282 | 312 |
22 | 2.200 | 309 | 342 |
24 | 2.620 | 367 | 406 |
26 | 3.070 | 431 | 477 |
28 | 3.560 | 500 | 553 |
30 | 4.105 | 576 | 638 |
32 | 4.650 | 653 | 723 |
34 | 5.265 | 740 | 819 |
36 | 5.880 | 826 | 914 |
38 | 6.560 | 921 | 1020 |
40 | 7.260 | 1021 | 1130 |
