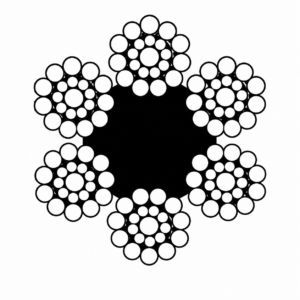

HYPERLINE F - 6x19 Standard Fiber Core Wire Rope

Nominal diameter	Approx. weight	Minimum breaking load 1770N/mm^²	Minimum breaking load 1960N/mm^²
mm	Kg/m	kN	kN
3	0.0311	4.90	5.43
4	0.0554	8.70	9.63
5	0.0865	13.6	15.1
6	0.125	19.6	21.7
7	0.170	26.7	29.6
8	0.221	34.8	38.5
9	0.280	44.1	48.8
10	0.346	54.4	60.2
11	0.419	65.8	72.9
12	0.498	78.3	86.7
13	0.585	91.9	102
14	0.678	107	118
16	0.886	139	154
18	1.12	176	195
20	1.38	218	241
22	1.67	263	291
24	1.99	313	347
26	2.34	368	408
28	2.71	426	472
32	3.54	557	617
36	4.48	705	781
40	5.54	870	963
44	6.70	1050	1163
48	7.97	1250	1384
52	9.36	1470	1628
56	10.9	1710	1894
