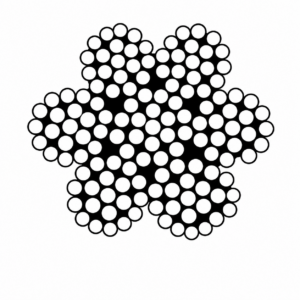

HYPERLINE S - 6x19 Standard Steel Core Wire Rope

Nominal diameter	Approx. weight	Minimum breaking load 1770N/mm^²	Minimum breaking load 1960N/mm^²
mm	Kg/m	kN	kN
3	0.0342	5.29	5.86
4	0.0609	9.40	10.4
5	0.0952	14.7	16.3
6	0.138	21.2	23.5
7	0.187	28.8	31.9
8	0.243	37.6	41.6
9	0.308	47.6	52.7
10	0.381	58.8	65.1
11	0.461	71.1	78.7
12	0.548	84.6	93.7
13	0.643	99.3	110
14	0.746	115	127
16	0.974	150	166
18	1.23	190	210
20	1.52	235	260
22	1.84	284	314
24	2.19	338	374
26	2.57	397	440
28	2.98	461	510
32	3.90	602	667
36	4.93	761	843
40	6.09	940	1041
44	7.37	1140	1262
48	8.77	1350	1495
52	10.3	1590	1761
56	12.0	1840	2038

Nominal diameter

Approx. weight

Minimum breaking load 1770N/mm^²

Minimum breaking load 1960N/mm^²

Kg/m

0.0342

5.29

5.86

0.0609

9.40

10.4

0.0952

14.7

16.3

0.138

21.2

23.5

0.187

28.8

31.9

0.243

37.6

41.6

0.308

47.6

52.7

0.381

58.8

65.1

0.461

71.1

78.7

0.548

84.6

93.7

0.643

99.3

110

0.746

115

127

0.974

150

166

1.23

190

210

1.52

235

260

1.84

284

314

2.19

338

374

2.57

397

440

2.98

461

510

3.90

602

667

4.93

761

843

6.09

940

1041

7.37

1140

1262

8.77

1350

1495

10.3

1590

1761

12.0

1840

2038
