Drawn galvanized standard wire rope (non rotation resistant with round wires), used in many applications eg, as cargo runner, hoisting, luffing, mooring, towing, anchoring etc. Also suitable for fabrication of steel wire rope slings for lifting operations.
The independent wire rope core provides more strength and stability to the wire rope compared to fibre core.
Very flexible.

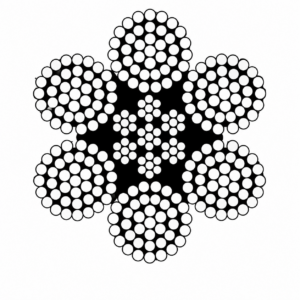

Construction according to DIN 3066 standard (1+6+12+18).
| Nominal diameter | Approx. weight | Minimum breaking load | |
|---|---|---|---|
| 1770N/mm² | 1960N/mm² | ||
| mm | Kg/m | KN | |
| 4.50 | 0.077 | 11.4 | 12.7 |
| 5.00 | 0.095 | 14.1 | 15.6 |
| 6.00 | 0.13 | 20.3 | 22.5 |
| 7.00 | 0.18 | 27.6 | 30.6 |
| 8.00 | 0.24 | 36.1 | 40.0 |
| 9.00 | 0.30 | 45.7 | 50.6 |
| 10.00 | 0.38 | 56.4 | 62.5 |
| 11.00 | 0.46 | 68.2 | 75.5 |
| 12.00 | 0.54 | 81.2 | 89.9 |
| 13.00 | 0.64 | 95.2 | 105.4 |
| 14.00 | 0.74 | 110 | 122 |
| 15.00 | 0.86 | 127 | 141 |
| 16.00 | 0.97 | 144 | 159 |
| 17.00 | 1.10 | 164 | 182 |
| 18.00 | 1.23 | 183 | 203 |
| 19.00 | 1.37 | 204 | 226 |
| 20.00 | 1.52 | 225 | 249 |
| 21.00 | 1.68 | 249 | 276 |
| 22.00 | 1.84 | 273 | 302 |
| 23.00 | 2.01 | 299 | 331 |
| 24.00 | 2.19 | 325 | 360 |
| 25.00 | 2.38 | 353 | 391 |
| 26.00 | 2.57 | 381 | 422 |
| 27.00 | 2.77 | 412 | 456 |
| 28.00 | 2.98 | 442 | 489 |
| 30.00 | 3.44 | 510 | 565 |
| 32.00 | 3.90 | 577 | 639 |
| 34.00 | 4.42 | 654 | 724 |
| 35.00 | 4.67 | 692 | 766 |
| 36.00 | 4.93 | 730 | 808 |
| 38.00 | 5.51 | 816 | 904 |
| 40.00 | 6.09 | 902 | 999 |
| 42.00 | 6.73 | 996 | 1103 |
| 44.00 | 7.37 | 1090 | 1207 |
| 45.00 | 7.72 | 1143 | 1266 |
| 46.00 | 8.07 | 1195 | 1323 |
| 47.00 | 8.42 | 1248 | 1382 |
| 48.00 | 8.77 | 1300 | 1440 |
| 50.00 | 9.53 | 1410 | 1561 |
| 51.00 | 9.91 | 1465 | 1622 |
| 52.00 | 10.3 | 1520 | 1683 |
| 54.00 | 11.1 | 1645 | 1822 |
| 55.00 | 11.5 | 1708 | 1891 |
| 56.00 | 11.9 | 1770 | 1960 |
| 57.00 | 12.3 | 1835 | 2032 |
| 58.00 | 12.8 | 1900 | 2104 |
| 59.00 | 13.2 | 1965 | 2176 |
| 60.00 | 13.7 | 2030 | 2248 |
