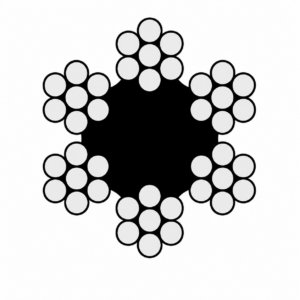

HYPERMARE F - 6×7 Fiber Core

Drawn galvanized standard wire rope. Mainly used in small diameters. Applications include stay wire, release wire and fishing operations. Construction according to EN standard 12385.

Heavy galvanized option is also available upon request.

Specifications

Quality: Galvanised
Tensile strength: 1570 /1770 /1960 N/mm2
Total number of strands: 6
Total number of wires: 42
Type of core: Fiber
Outer wires number: 36
Outer strands number: 6
Type of lay: regular lay
Direction of lay: right hand lay
On request options: Heavy galvanized, ZnAl coated, ungalvanized, left hand, greasing level.

Technical Data

Nominal diameter	Approx. weight	Minimum breaking load
Nominal diameter	Approx. weight	1570N/mm^²	1770N/mm^²	1960N/mm^²
mm	Kg/m	kN
2.00	0,0138	2,10	2,35	2,60
3.00	0,0311	4,70	5,29	5,86
4.00	0,0552	8,40	9,40	10,4
5.00	0,0863	13,10	14,7	16,3
6.00	0,124	18,80	21,2	23,4
7.00	0.169	25.55	28.8	31.9
8.00	0.221	33.35	37.6	41.6
9.00	0.279	42.20	47.6	52.7
10.00	0.345	52.20	58.8	65.1
11.00	0.417	63.10	71.1	78.7
12.00	0.497	75.05	84.6	93.7
13.00	0.583	88.10	99.3	110
14.00	0.676	102.01	115	128
15.00	0.779	117.50	132.5	147.5
16.00	0.883	133.05	150	167
17.00	1.001	150.80	170	189
18.00	1.120	168.50	190	211
19.00	1.250	188.50	212.5	235.5
20.00	1.380	208.50	235	260
